製品一覧
LED電源
写真 | 型番 | 問合せページ | 電力(W) | 定電圧(V) | 定電流(mA) | PSEの有無 | 調光機能 | 奥行(mm) | 長さ(mm) | 高さ(mm) |
---|---|---|---|---|---|---|---|---|---|---|
![]() | LA1012 | ![]() |
12-12.8 | 12V,16V,24V,36V,48V | 125~250mA, 350mA, 500mA, 700mA, 1000mA | ✓ | - | 85 | 35 | 24 |
![]() | LP1013 | ![]() |
7-12.6 | 12V,18V,24V,36V | 175~350mA, 500mA, 700mA, 1000mA | ✓ | - | 85 | 35 | 24 |
![]() | LP1020 | ![]() |
16-21 | 12V, 24V, 36V, 52V | 200~350mA, 700mA, 1000mA, 1500mA, 2000mA | ✓ | - | 95 | 40 | 25 |
![]() | LP1025 | ![]() |
19-30 | 12V, 24V, 36V, 42V, 50V | 300~600mA, 700mA, 1000mA, 2000mA | ✓ | - | 80 | 78 | 26 |

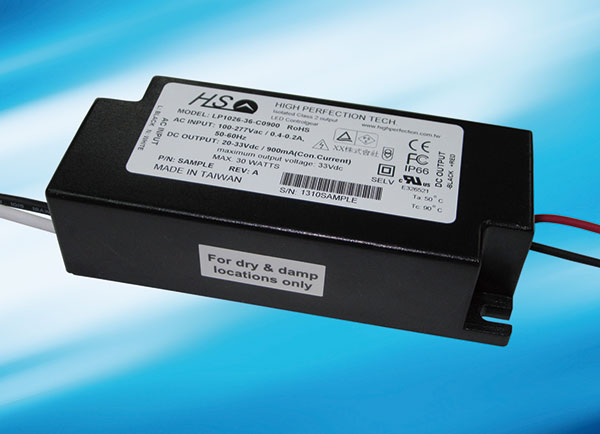

![]() | LP1026 | ![]() |
18-30 | 12V, 24V, 36V, 48V 10~54V | 700mA, 1000mA, 1500mA, 2200mA 530mA / 200~350mA (45-86V) | ✓ | - | 96 | 40 | 25 |
![]() | LP1036 | ![]() |
32-40 | 12V, 24V, 36V, 48V 10~54V | 700mA, 1000mA, 2000mA, 3330mA 350~700mA (56~112V) | ✓ | PWM/VR/0-10V | 120 | 43 | 32 |
![]() | LP1040 | ![]() |
32-40 | 12V, 24V, 48V | 700mA, 1000mA, 2000mA, 3000mA, 4450mA | ✓ | - | 95 | 70 | 32 |
![]() | LF1048 | ![]() |
30-60 | 24V, 36V, 48V 18~56V | 800~1670mA, 2000mA, 3000mA 500~700mA (56~112V) | ✓ | VR/0-10V | 142 | 47 | 32 |
![]() | LP1056 | ![]() |
30-60 | 24V, 36V, 48V 18~54V | 800~1670mA, 2500mA, 2750mA 350~700mA 84~168V, 0.5~1A (56~112V) | ✓ | PWM/VR/0-10V | 95 | 70 | 32 |
![]() | LF1075 | ![]() |
35-75 | 24V, 36V, 48V 18~54V | 800~1670mA, 2500mA, 2750mA 350~700mA 84~168V, 0.5~1A (56~112V) | ✓ | PWM/VR/0-10V | 5.59 | 1.85 | 1.26 |
![]() | LP1096 | ![]() |
60-100 | 24V, 36V, 48V 18~56V | 1.2~2.4A, 3.2A, 2.4A, 5A 0.5~0.7A (80~168V),1~1.25A 50~112V | ✓ | PWM/VR/0-10V | 116 | 100 | 34.5 |
![]() | LF1153 | ![]() |
60-150 | 24V, 36V, 48V 18~54V | 1.8~3.75A, 2.5~5A 0.5~1A (120~240V), 1~2A (60~112V) | ✓ | PWM/VR/0-10V | 193 | 74 | 40 |
![]() | LF1156 | ![]() |
60-150 | 24V, 36V, 48V 18~54V | 1.8~3.75A, 2.5~5A 0.5~1A (120~240V), 1~2A (60~112V) | ✓ | PWM/VR/0-10V | 140.6 | 118 | 43.8 |
![]() | LF2200 | ![]() |
100-200 | - | 2ch (片側100W) 1ch:300~550mA 100~286Vdc 620~1000mA (50~160V) | ✓ | PWM/VR/0-10V | 236 | 74 | 40 |
![]() | LF1240 | ![]() |
96-246 | 24V, 36V, 48V 22~52V | 3.3~6.6A(20~40V) 2.5~5A(26~56V) 0.50~1A (132~264V),0.8~1.75A (75-150V) | ✓ | PWM/VR/0-10V | 236 | 74 | 40 |
![]() | LT1016 | ![]() |
16.8 | 90~135V | 350~700mA (18~42V) 500~1000mA (14~28V) | ✓ | トライアック | 57 | 63 | 30 |
![]() | LT1026 | ![]() |
11-16.8 | 90~135 | 350~600mA (38~52V) 450~900mA (24~42V) 800~1400mA (16~28V) | ✓ | トライアック | 78 | 80 | 26 |
